Vinik Marine Equipment List


      On this page, click on an image to see an enlargement.

  Vinik No. 6     Liz Vinik     Nick Vinik     Agnes     Mike Azzolino     Ken Vinik     Bob Vinik     Barge Info


Vinik No. 6 (ex. "Penn 6" - Kirby):

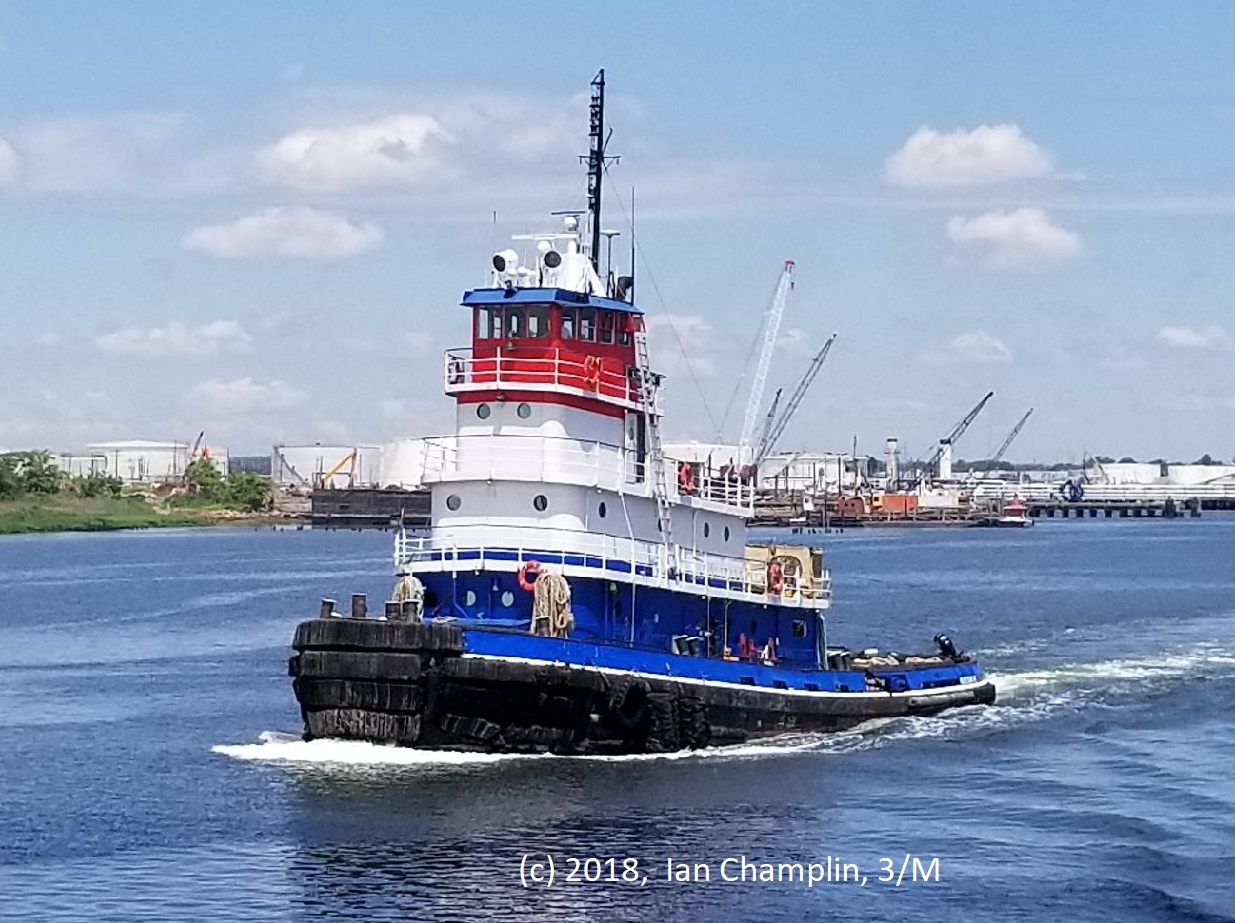

Liz Vinik (ex "Maryland" - Kirby):
  • 3,000 hp
  • Height of Eye: 35 ft.
  • Twin-screw, Model Bow, Flanking Rudders, Single Drum Towing Machine
  • Bollard Pull: 82,775 pounds
  • Length: 110 ft.
  • Draft: 14 ft.
  • Air Draft: 60 ft.
  • Breadth: 28 ft.
  • Info Source:
    http://www.tugboatinformation.com/tug.cfm?id=1898

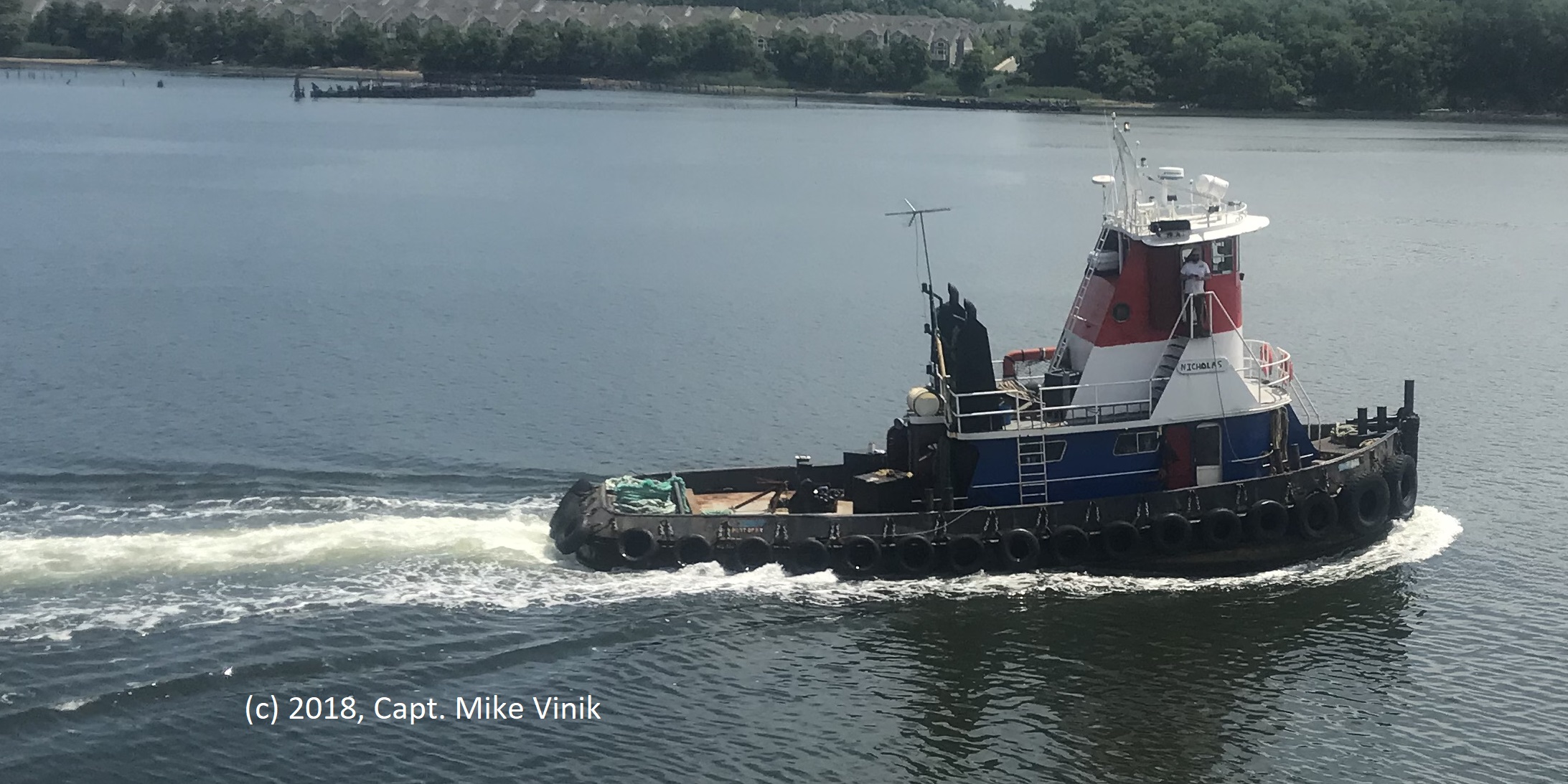

Nicholas Vinik (ex "Maria J." -
       Construction & Marine Co. Inc. of Elizabeth, NJ)
:

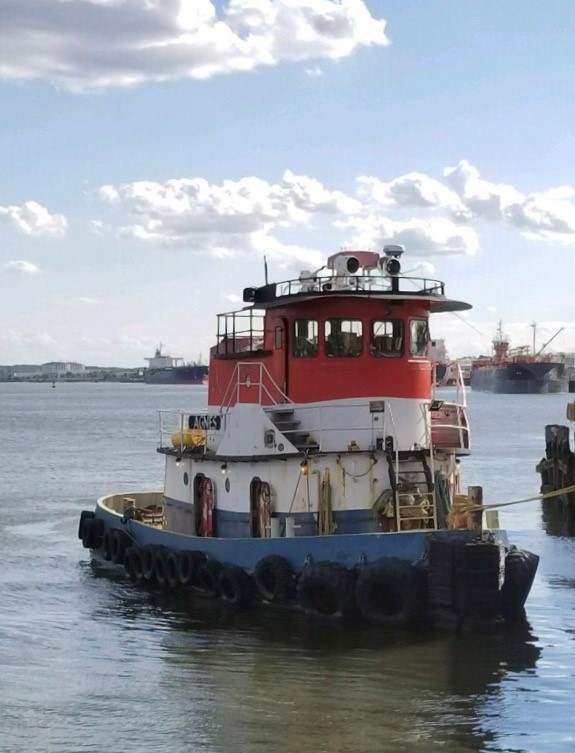

Agnes (ex "Sand Mate"):

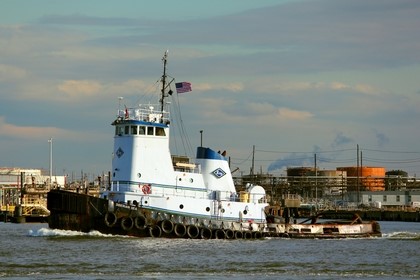

Mike Azzolino (ex "Siberian Sea" - Kirby):
  • Not available at this time.
  • 3,000 hp
  • Height of Eye: 35 ft.
  • Twin-screw, Model Bow, Single Drum Towing Machine
  • Length: 110 ft.
  • Draft: 14 ft.
  • Air Draft: 60 ft. Mast Up, 40 ft. Mast Down
  • Breadth: 32 ft.
  • Info Source:
    http://www.tugboatinformation.com/tug.cfm?id=9629&fs

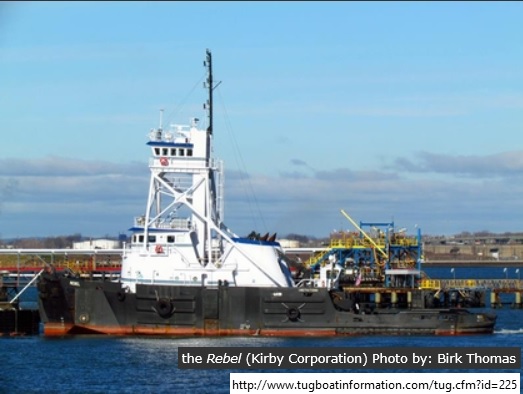

Ken Vinik (ex. "Rebel" - Kirby Corporation):
  • Not available at this time.
  • 7,200 hp
  • Tonnage: Gross: 194, Net: 132
  • twin screw
  • Length: 138
  • Depth: 13.9 ft.
  • Year Built: 1975, by Ship Builder: EQUITABLE SHIPYARDS INC
  • Breadth: 46 ft.

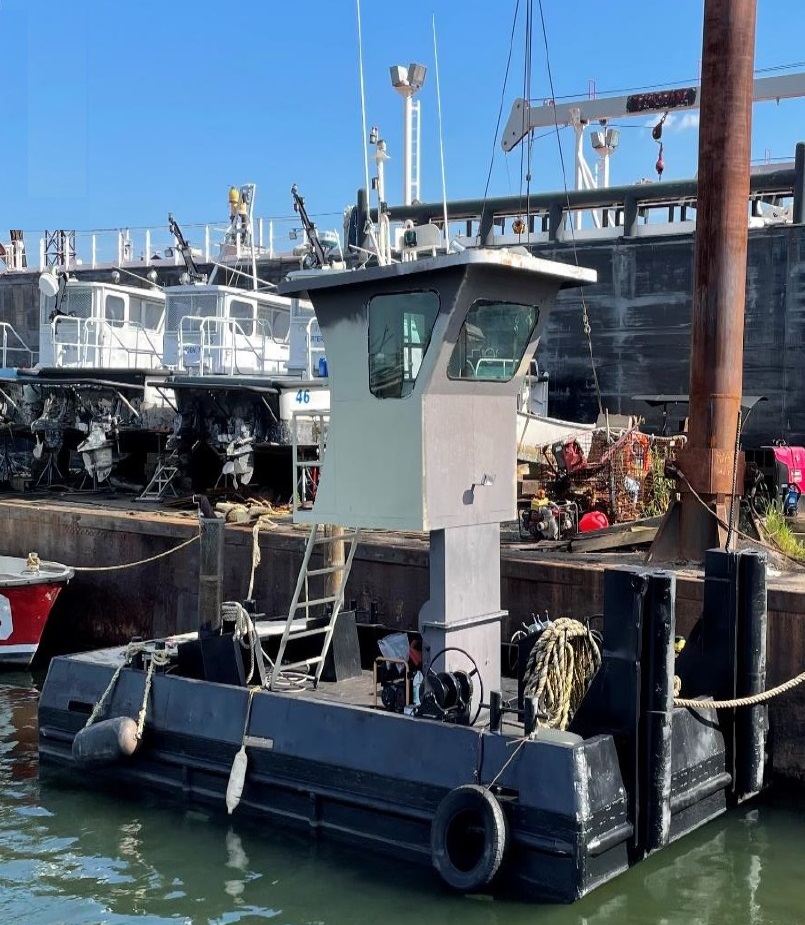

Pushboat BOB VINIK :
  • pdf file: PushBoat.BOB.VINIK.pdf
  • Built: 2002
  • Type of Vessel: Push Tugboat
  • Hull Construction: Steel
  • Fuel Type: Diesel
  • Propulsion Type: Twin Inboard
  • Length: 25'
  • Beam: 14í
  • Draft: 4'
  • Displacement: 37,000 lbs
  • Cruising Speed: 6.5 KTS
  • Top Speed: 7.5 KTS
  • Fuel Capacity: 450 Gallons
  • Total Horsepower: 480
  • Navigation Equipment: (2) VHFs, (2) GPS Plotter
  • Special Equipment: (2) 5 Ton winches
  • Height of Eye: 14'
  • Main Engines: (2) Detroit 671
  • Helm Stations: Forward Deck, Pilot House

Barges and Moorings
    Barges
  • For various uses.
    Moorings are available in:
  • Perth Amboy Anchorage
  • Whitestone Anchorage
